🇮🇳 Celebrating Independence Day with Innovation: AS Academy’s Mobile-Controlled Obstacle Avoidance Robot WorkshopYour blog post

At AS Academy, we believe that learning by doing is the most powerful way to gain knowledge. For us, teaching is not about memorizing slides, but about building real systems that spark curiosity and confidence.That’s why, on 15th August 2025, we celebrated India’s Independence Day with a special initiative: a hands-on workshop on Mobile-Controlled Obstacle Avoidance Robots. This event was more than just a robotics session. It was a way of blending the spirit of independence with the freedom of technology creation, while also giving students their first structured glimpse into embedded systems and bare-metal programming.

🔥 Why This Workshop?

Robotics is no longer just the future — it’s the present. From autonomous cars and drone deliveries to smart factories and healthcare robots, obstacle detection and avoidance lie at the heart of modern automation.

We chose this project because it represents the three pillars of robotics and embedded systems:

• Mobility: How to control a robot wirelessly using a mobile phone.

• Autonomy: How to make the robot think and avoid obstacles on its own.

• Integration: How to combine sensors, actuators, microcontrollers, and software into a single working system.

The obstacle-avoidance robot is simple enough for beginners yet rich enough to demonstrate the real-world concepts of embedded engineering. By the end, participants had not only built a robot but also developed an understanding of the hardware and software architecture of embedded systems.

🛠️ What Students Learned Step by Step

This workshop wasn’t just about wires and code — it was about understanding the complete picture of embedded systems. Participants explored the following:

1. Basics of Embedded Systems

An embedded system is a computer system designed for a dedicated function within a larger system. Unlike general-purpose computers, embedded systems are application-specific.

• Definition: Combination of hardware + software, optimized for a task.

• Microcontrollers as the brain: A microcontroller integrates CPU + memory (Flash, SRAM) + peripherals on a single chip. Example: ATmega328P in Arduino Uno.

• Characteristics:

  • Resource-constrained (limited memory, processing power).

  • Real-time operation.

  • Power efficiency.

• Examples:

  • Washing machine controller → controls motor speed, water levels, sensors.

  • Smart wearables → monitor health metrics and communicate via Bluetooth.

  • Automotive ECUs → control braking, airbag deployment, engine parameters.

2. Embedded Hardware & Software Architecture

Hardware Architecture:

• Microcontroller (MCU) → central processing unit.

• Memory: Flash (program storage), SRAM (temporary data), EEPROM (non-volatile data).

• Sensors: Inputs like ultrasonic, accelerometer, temperature.

• Actuators: Outputs like motors, LEDs, buzzers.

• Communication Interfaces: UART, SPI, I²C, CAN.

Software Architecture:

• Firmware: Low-level code written in C/Embedded C controlling hardware directly.

• Drivers: Interface between firmware and peripherals (e.g., UART driver, GPIO driver).

• Application Logic: Higher-level program logic (e.g., obstacle detection algorithm).

• RTOS Layer (if present): Task scheduling, inter-task communication.

Application vs Firmware:

• Application programming (mobile apps, web apps) runs on top of an OS with APIs.

• Firmware interacts directly with registers of peripherals (bare-metal or via drivers).

3. Arduino Programming Basics

• Language: Based on C/C++.

• Core Functions:

  • setup() → runs once at boot.

  • loop() → runs continuously.

• Code Structure: Uses conditional statements (if/else), loops (for, while), functions, and libraries.

• Flashing Process: Arduino IDE compiles C++ code → generates machine code (hex file) → uploaded to MCU via bootloader.

• Real-time behavior: Code interacts with hardware directly via I/O registers, e.g., setting a digital pin HIGH to turn on a motor.

4. Bluetooth Communication (UART Protocol)

• Protocol: UART (Universal Asynchronous Receiver/Transmitter).

• Baud Rate: Commonly 9600 bps for Arduino + HC-05.

• How it works:

  • Mobile app sends ASCII characters ('F' for Forward, 'B' for Backward).

  • Arduino reads data via Serial.read().

  • Code interprets command → triggers motor driver signals.

• TX/RX Concept:

  • TX of Bluetooth → RX of Arduino.

  • RX of Bluetooth → TX of Arduino.

This teaches how embedded devices talk to external interfaces using serial communication.

5. Sensor Integration

• Ultrasonic Sensor (HC-SR04):

  • Trigger pin sends ultrasonic pulse.

  • Echo pin measures return time.

  • Distance = (Time × Speed of Sound) / 2.

• Arduino Implementation: Using pulseIn() function to capture echo time.

• Use Case:

  • If distance < 20 cm → stop motor / turn left.

  • Else → keep moving forward.

• Real-world analogy: Same principle in parking sensors and autonomous navigation.

6. Bare-Metal Programming: A First Glimpse

Most beginners stop at Arduino functions, but beneath lies bare-metal control:

• Arduino digitalWrite(13, HIGH) → internally sets a bit in the PORTB register of ATmega328P.

• Example (register-level code):

  DDRB |= (1 << PB5); // Set pin 13 as output PORTB |= (1 << PB5); // Drive pin 13 HIGH

• Bare-metal vs OS-based:

  • Bare-metal → no OS, developer manages everything (scheduling, memory, drivers).

  • OS-based → Linux/RTOS handles tasks, developer focuses on application layer.

• Why it matters:

  • Predictable timing (real-time).

  • Reduced overhead → critical in automotive, medical devices.

This workshop gave participants a peek into what happens under Arduino functions, building curiosity for deeper embedded learning.

7. Decision-Making Logic & Real-Time Control

• Obstacle Avoidance Algorithm (example):

  if (distance < 20) { stopMotors(); turnLeft(); } else { moveForward(); }

• Control Loops:

  • Polling: MCU checks sensor repeatedly in loop().

  • Interrupt-driven: MCU reacts instantly when sensor triggers an interrupt.

• Real-Time Thinking: Understanding that decisions must be made within strict time constraints (e.g., 10 ms).

This concept scales up to real-time embedded systems like drones and self-driving cars.

8. Hands-On Debugging & Problem Solving

Debugging is where engineers learn the most. Students gained exposure to:

• Common Issues:

  • Loose jumper wires.

  • Wrong baud rate in serial communication.

  • Incorrect polarity in motor driver connections.

• Debugging Tools:

  • Arduino Serial Monitor for printing debug messages.

  • Logic analyzers or oscilloscopes in advanced scenarios.

• Engineering Mindset:

  • Break problem into smaller tests (check motor separately, then add sensor).

  • Validate assumptions step by step.

  • Develop patience and structured problem-solving skills.

This hands-on troubleshooting mirrors real-world embedded debugging, where 70% of time is often spent on fixing and refining systems.

✅ This elaborated version deepens the technical learning content and makes the blog stronger for students + professionals who want more than surface-level robotics.

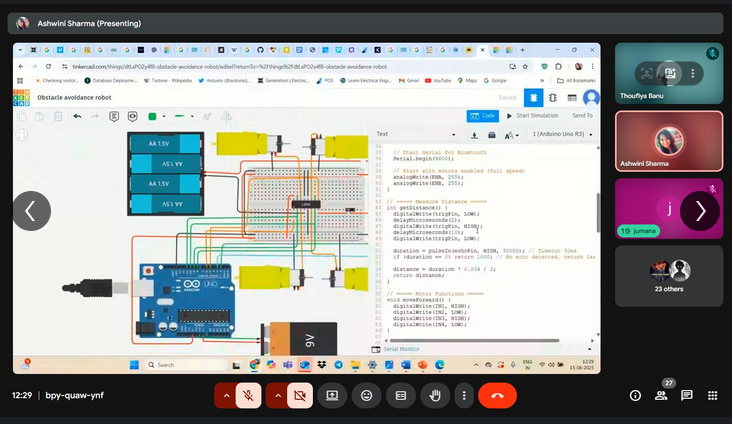

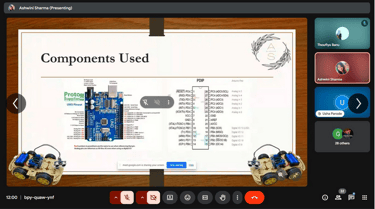

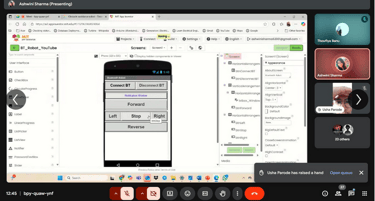

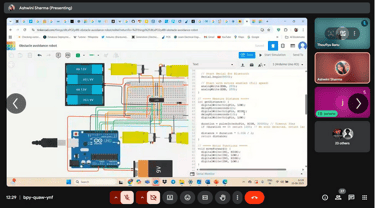

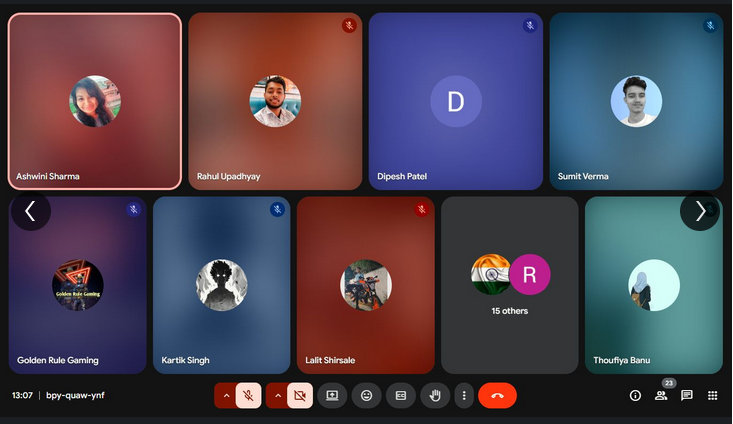

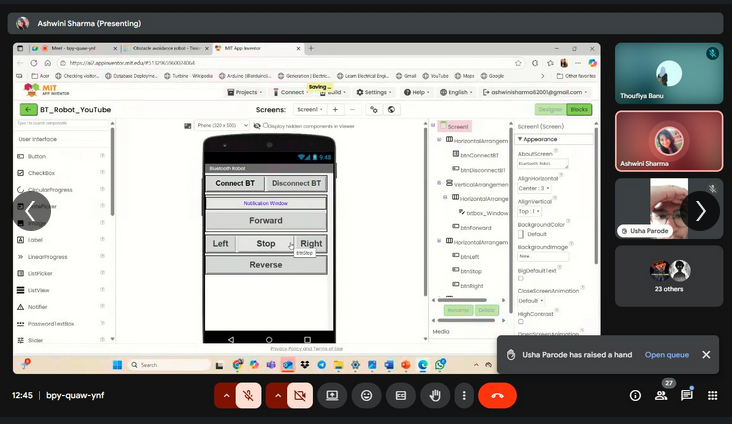

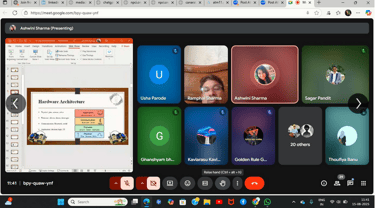

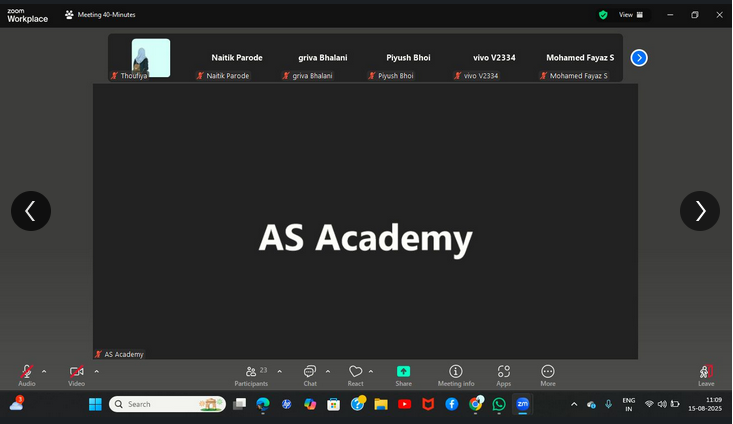

📸 Few screenshots of the live workshop:

🎓 This is the Sample image of Participation certificate:

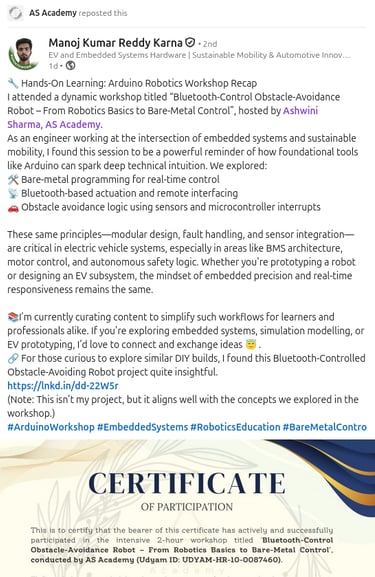

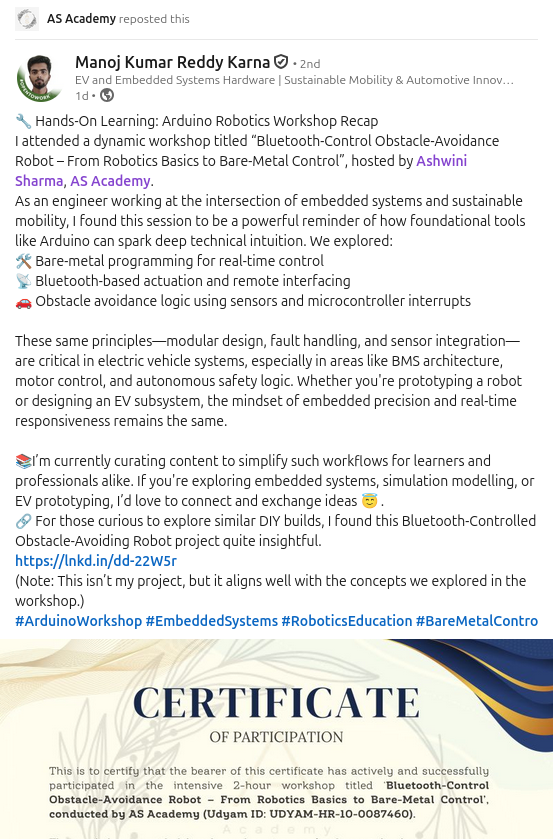

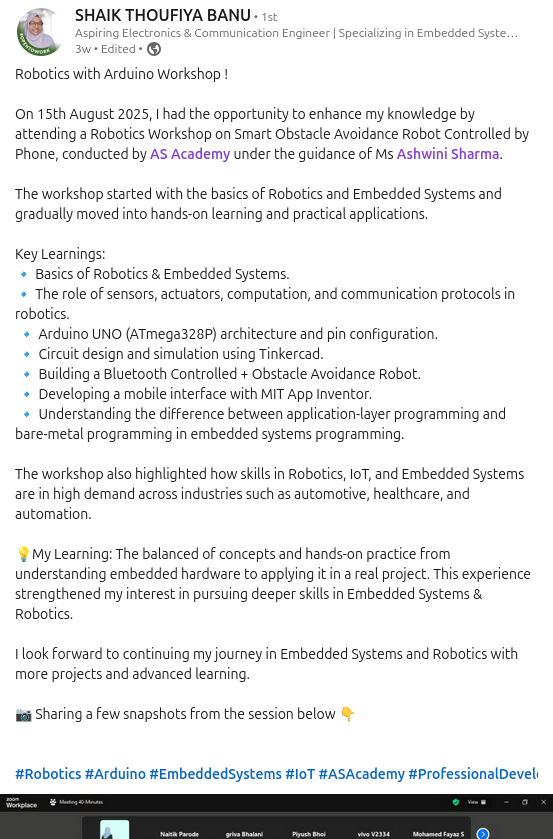

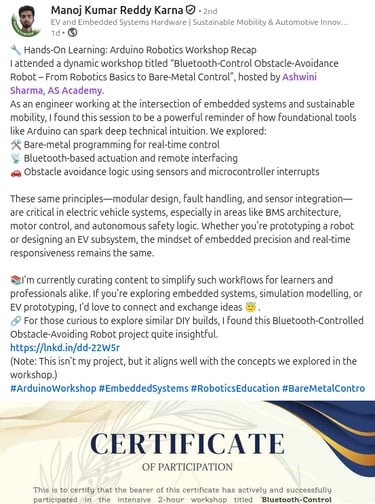

💬 these are some the LinkedIn student feedback posts:

💻 Experience the Project Yourself

At AS Academy, we believe knowledge should be accessible and shareable. That’s why we’ve made the entire project available on Tinkercad Simulation.

👉 https://www.tinkercad.com/things/dtLxPO2y4f8-obstacle-avoidance-robot

Even if you missed the session, you can still:

• Run the project virtually.

• Modify the code.

• Experiment with your own designs.

This ensures that the learning experience continues far beyond the workshop.

🌟 Student Experience & Impact

The energy during the session was inspiring. For many, this was their first hands-on robotics project.

• Some participants shared on LinkedIn that the workshop gave them their first real exposure to embedded systems and firmware.

• Others were excited to finally understand the hardware-software connection in robotics.

• A few mentioned that it inspired them to pursue embedded systems as a career path.

Moments like these — when learners see theory come alive — are exactly what AS Academy strives for: transforming learners into confident creators.
